GALLERY ST-A536
Details
Engineering application
Parameter configuration
| Model | Source Power | Source Lumen | Size（A/B/C mm） |
| ST-A535-AFCJ | 17W | 2280LM | φ118/119/208 |
| ST-A535-AHCK | 25W | 3250LM | |
| ST-A535-AHCL | 32W | 3850LM | |
| ST-A535-ALCL | 36W | 4630LM | |
| ST-A536-AFCJ | 17W | 2280LM | φ96/113/208 |
| ST-A536-AHCK | 25W | 3250LM | |
| ST-A536-AHCL | 32W | 3850LM | |
| ST-A537-AFCJ | 17W | 2280LM | φ80/104/208 |
| ST-A537-AHCK | 25W | 3250LM |
| Model | Source Power | Source Lumen | Size（A/B/C mm） |
| ST-A538-DECH | 7W | 830LM | φ58/86/162 |
| ST-A538-DECJ | 13W | 1290LM |

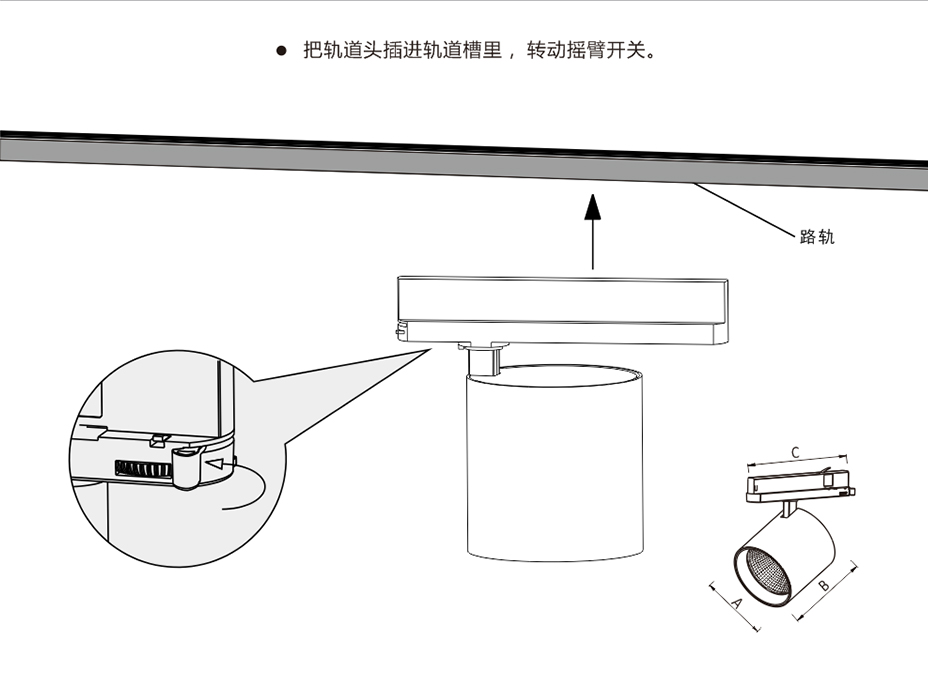

Installation instruction
