DORA
Details

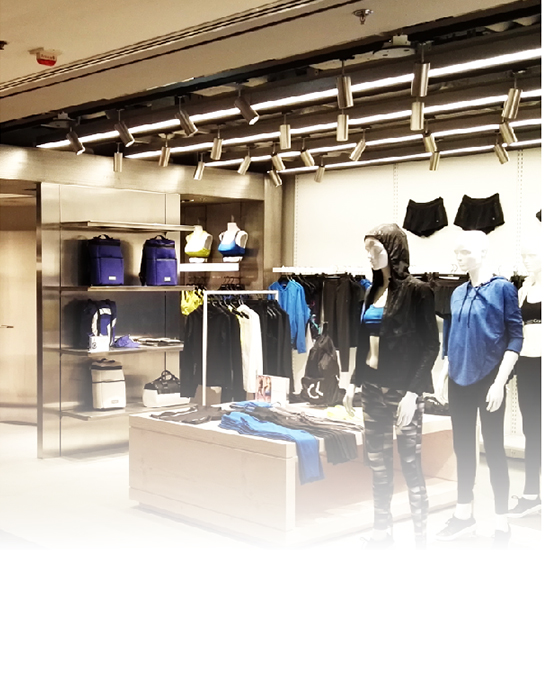

Engineering application
Parameter configuration
| Model | Source Power | Source Lumen | Size（A/B/C/D mm） |
| ST-A391-AFCJ | 17W | 2280LM | φ96/210/50/228 |
| ST-A391-AHCK | 25W | 3250LM | |
| ST-A391-AHCL | 32W | 3850LM | |
| ST-A391-ALCL | 36W | 4640LM | |
| ST-A390-ADCJ | 12W | 1600LM | φ0/150/50/2280 |
| ST-A390-AFCJ | 17W | 2280LM | |
| ST-A390-AHCK | 25W | 3250LM | |
| ST-A392-ADCJ | 12W | 1500LM | φ6/155/43/228 |
| ST-A392-AFCJ | 17W | 2130LM | |
| ST-A392-AHCK | 25W | 3250LM |

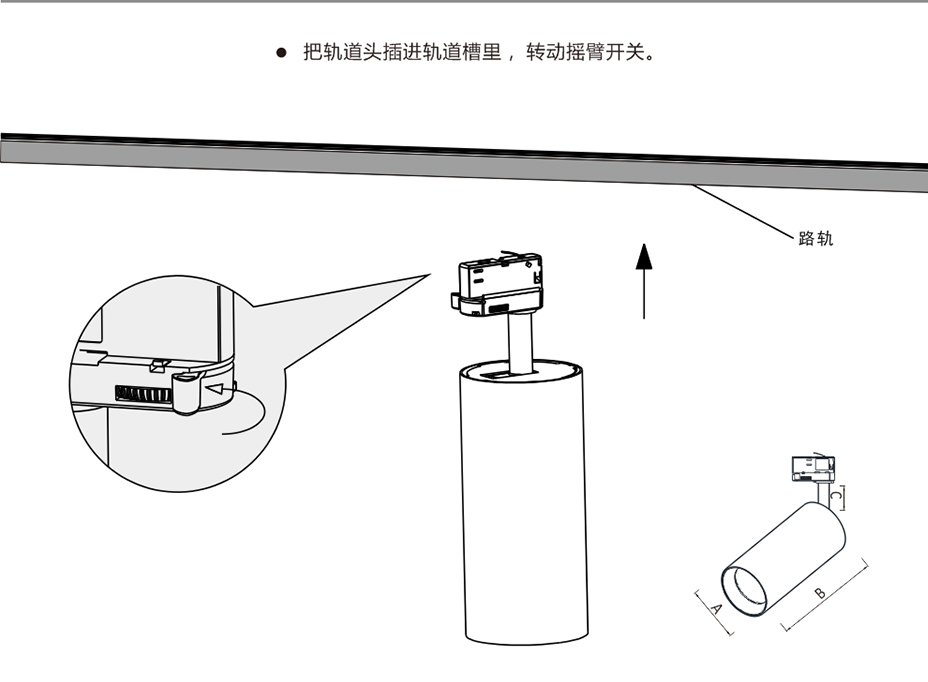

Installation instruction
